TDD-LTE 4G Band 40 2300MHz Repeater

  • Model No: WRB40
  • Availability: In Stock

4G 2300MHz TDD-LTE cellular repeater designed for boosting your 4G 2300MHz TDD-LTE signal and improve your data speed service!

The 2300MHz TDD-LTE 4G signal repeater was designed to solve the signal blind problem and improve the signal coverage. With dedicated 2300MHz filters and patented TDD-LTE time slot detecting technology, the WRB40P signal repeater helps you to extend 4G 2300MHz signal coverage up to 500 square meters in the indoor areas.

WRB40P is a lately released TDD-LTE 4G repeater works on 2300MHz 4G band 40. With fully comply to 4G band 40 spectrum 2300-2400MHz, together with 20dBm pro power and 59dB gain, WRB40P repeater supplies affordable and effective full-band signal coverage solution on the band 40 TDD-LTE mobile phone networks.

The WRB40P 4G TD-LTE signal repeater can output 20dBm power with max 59dB gain. The defined coverage is 500 square meters and supports up to 10 simultaneous users. It's ideal for both of home and office/business use.

VoLTE function is supported in our 4G 2300MHz TDD-LTE signal repeater. You can enjoy superior HD video and voice calls over the 4G LTE network if your mobile operator and your smartphone support VoLTE service.

4G TDD-LTE 2300MHz Repeater Features

  • ▪  2300MHz 4G Band 40 TDD-LTE Signal Repeater
  • ▪  Full-band boosting technology covers 100MHz bandwidth
  • ▪  Supports all cellular enabled smartphones, tablets, data cart, etc
  • ▪  Reduce drop calls, improve voice quality and 4G internet speed
  • ▪  Enjoy HD voice and video calls with VoLTE service
  • ▪  Coverage is up to 500 sqm

    4G TDD-LTE 2300MHz Repeater Package Includes

    • 1 x Band 40 4G TDD-LTE Signal Repeater
    • 1 x Indoor Whip Antenna
    • 1 x AC/DC Power Supply

    4G TDD-LTE 2300MHz Repeater Installations

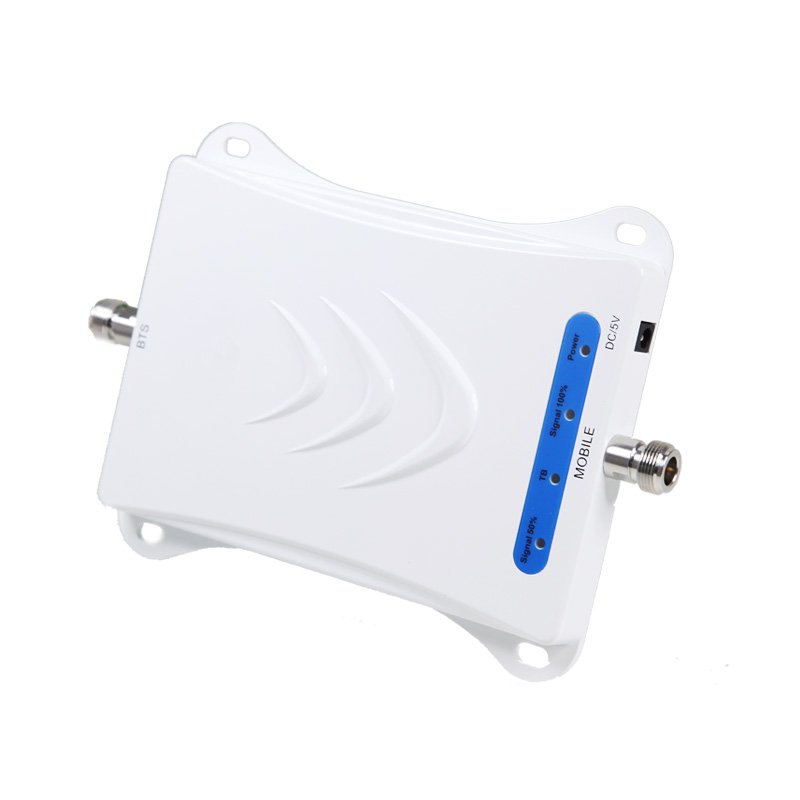

    Mount external aerial antenna in outdoors and make sure it points to the strongest signal sources.  Connect outdoor antenna to "BTS" port on the repeater by coaxial cable. Install the indoor whip antenna on "mobile" port of the repeater and plug in the power adapter.

    * The functional coverage area depends on the input signal strength.

    * Outdoor antenna and coaxial cable need to buy separately.

    Technical Specification
    Frequency 2300~2400MHz
    Power 20dBm
    Gain Uplink 54dB | Downlink 59dB
    Coverage Area 500 square meters
    Connector Type N-Female as standard
    Impedance 50 Ohm
    Power Supply AC100~240V 50~60Hz / DC5V 2A (Included)
    Mechanical Specification
    Dimension 215 x 150 x 20mm | 560 Gram
    Operating Temperature -10 - 60 degrees
    Humidity < 90%
