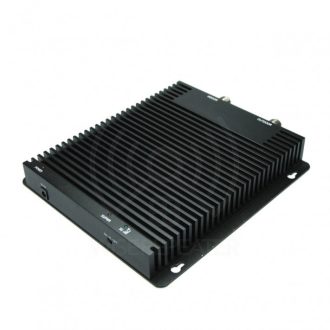

Mobile Phone Power Max+ 3G Repeater WR2100X is an ideal solution for providing a cost effective improvement for in-building coverage of a home, office, restaurant or buildings up to 2500 sqm.
WR2100X Power Max GSM+3G works on the 2100MHz frequency used for high-speed 3G data networks. It is designed to improve the call or data transmission quality of an area by receiving, amplifying and re-transmitting signals of the base station mast into a specified area up to 2500 sqm for up to 200 users.
Features of WR2100X - Mobile Phone Power Max+ 3G Repeater
- High-Speed 3G Networks
- 70 dB gain
- Coverage up to 2500sq m
- Supports up to 200 users
- Works 3G 2100MHz networks
- Simple and easy to install
- 1 x Power MAX+ 3G Repeater
- 1 x Whip Antenna
- 1 x AC/DC power supply
1) Mount external aerial antenna in outdoors and make sure it point at the nearest mobile tower to get stronger signals. Connect it to 10m signal cable.
2) Connect 10m cable to the repeater. Connect the indoor whip antenna and plug in the power adapter. (The effective coverage area of mobile repeater kit depends on the input signal provided from outdoor antenna.)
|Frequency||Uplink: 1920-1990MHz; 2110-2180MHz|
|Gain||Uplink: ≥65dB; Downlink: ≥70dB|
|Coverage Area||2500 Square Meters|
|Connector Type||N Female|
|Power Supply||DC 12V 2A|
|Dimension||194mm(L) x 234mm(W) x 30mm(H)|
|Net Weight||1620 gram|
