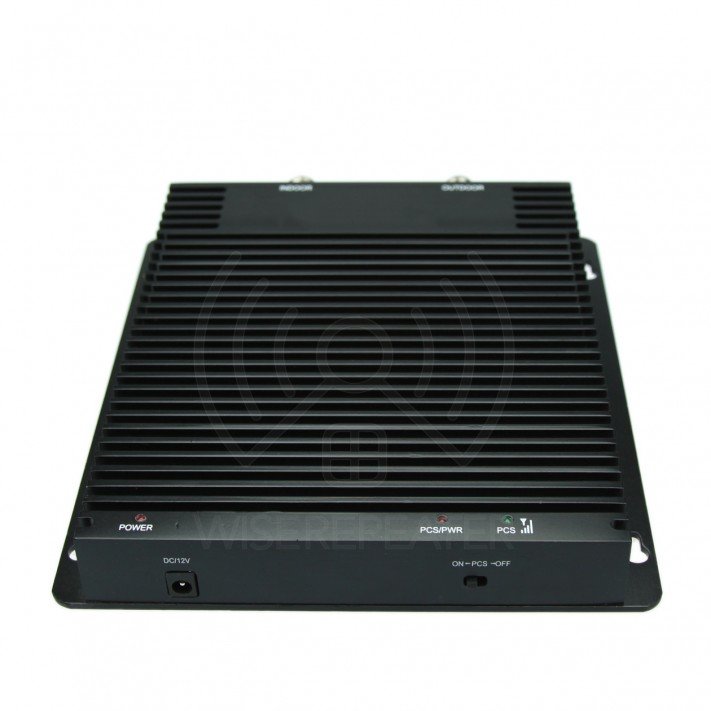

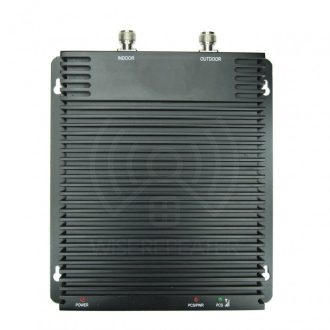

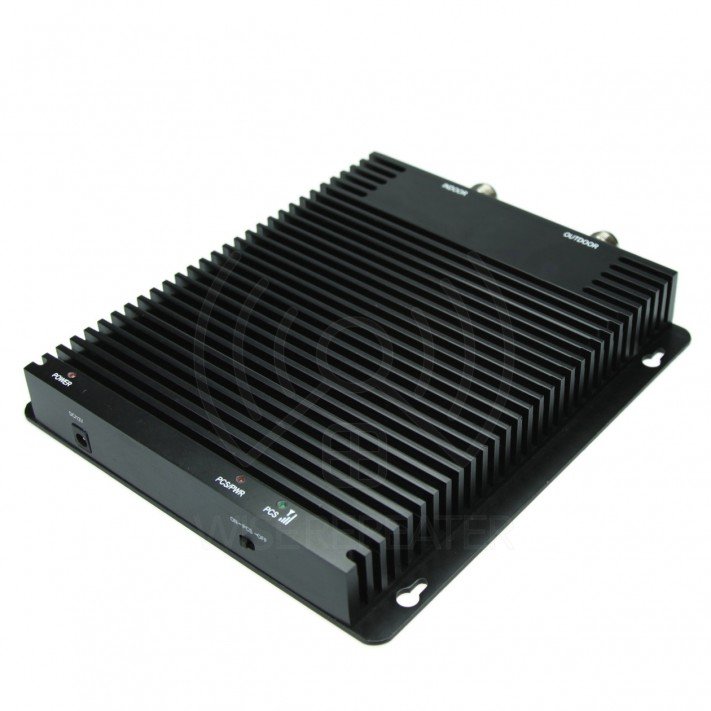

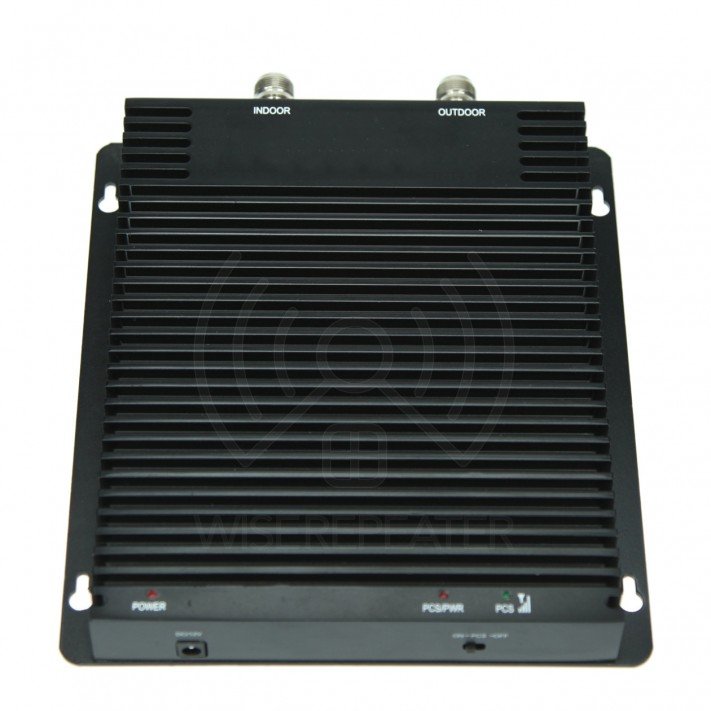

Power Max PCS1900MHz Cell Phone Repeater

  • Model No: WR1900L
  • Availability: In Stock

Options

Mobile phone repeater WR1900L is an ideal solution for providing a cost effective improvement in cellular in-building coverage of a home, office, restaurant or buildings up to 1000 sqm

It works on the 1900MHz frequency which is common for most networks in the US.It is designed to improve the call or data transmission quality of an area by receiving, amplifying and re-transmitting signals of the base station mast into a specified area up to 1000 sqm and supports up to 75 users.


Features:

  • PCS 1900 Networks
  • 70 dB gain
  • Coverage up to 1000 sq ft
  • Supports 75 simultaneous users
  • Works with all GSM 1900 networks
  • Simple and easy to install


Package includes:

  • 1 x PowerMAX PCS 1900MHz cellular repeater
  • 1 x Whip Antenna
  • 1 x AC/DC main power supply


Installation:

1) Mount external aerial antenna in outdoors and make sure it point at the nearest mobile tower to get stronger signals.  Connect it to 10m signal cable.

2) Connect 10m cable to the repeater.  Connect the indoor whip antenna and plug in the power adapter.  (The effective coverage area of mobile repeater kit depends on the input signal provided from outdoor antenna.)

Technical Specification
Frequency Uplink: 1850-1910MHz; Downlink: 1930-1990MHz
Power ≥21dBm
Gain Uplink: ≥65dB; Downlink: ≥70dB
Coverage Area 1000 Square Meters
Connector Type N Female
Power Supply DC 12V 2A
Mechanical Specification
Color Black
Dimension 194mm(L) x 234mm(W) x 30mm(H)
Net Weight 1620 gram
Operating Temperature -10℃~60℃
Humidity <90%
