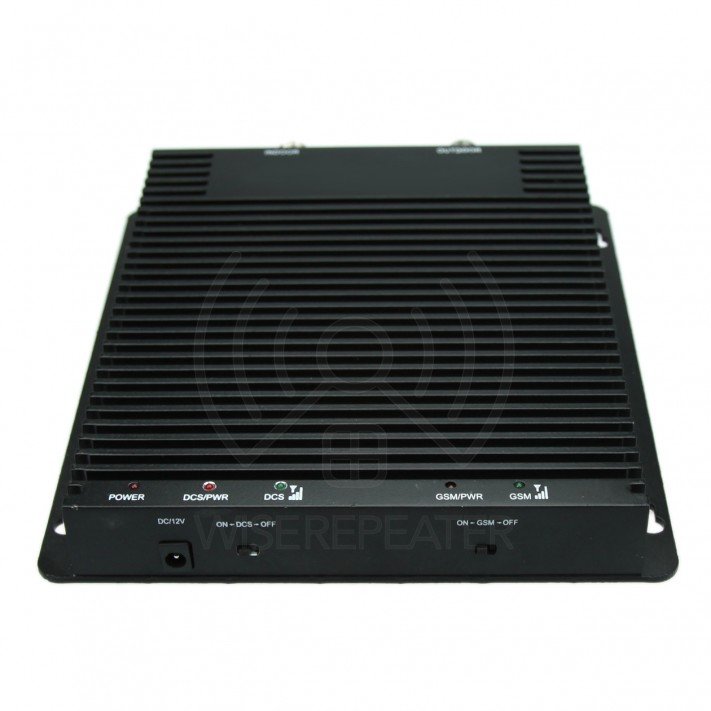

Mobile Phone Power Max Dual GSM900/1800 Repeater WR918L boost signal strength and coverage for all GSM voice networks for any UK or European services.
WR918L the Power Max Dual Band 900/1800 Repeater is compatible with all GSM 900 and 1800MHz services and guaranteed to provide improved coverage for your mobile phone signal over an area up to 1000 sq m.
Features of WR918L - Mobile phone Power Max Dual GSM900/1800 Repeater
- Dual Band GSM 900/1800
- 65 dB gain
- Coverage up to 1000 sq m
- Supports up to 100 users
- Works with ALL GSM voice networks
- Simple and easy to install
- 1 x Power MAX Dual GSM 900/1800MHz Repeater
- 1 x Whip Antenna
- 1 x AC/DC power supply
1) Mount external aerial antenna in outdoors and make sure it point at nearest mobile town to get stronger signals. Connect it to 10m signal cable.
2) Connect 10m cable to repeater. Connect the indoor whip antenna and plug in power adapter. (The effective coverage area of mobile repeater kit depends on the input signal provided from outdoor antenna.)
|Frequency||GSM900: Uplink: 890-915MHz Downlink: 935-960MHz GSM1800: Uplink:1710-1785MHz Downlink: 1805-1880MHz|
|Gain||Uplink≧ 60dB Downlink ≧ 65dB|
|Coverage Area||1000 sqm|
|Power Supply||DC 12V 2A|
|Dimension||194 x 234 x 30 mm|
|Net Weight||1620 Gram|
|Operating Temperature||-10C - 60C|
