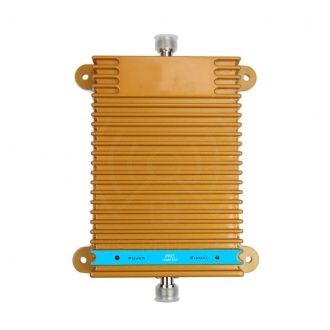

The PRO GSM 850 WR850P repeater captures and boosts a weak mobile signal through a high gain antenna and amplifier and boosts coverage for areas up to 500 square feet.
The PRO GSM 850 works on the 850MHz cellular frequency which used by most US cell phone carriers. Our WR850P PRO GSM 850 will give you guaranteed coverage for your home, office, cabin, warehouse or facility. This repeater kit comes complete with everything you need to increase signal strength and stop dropped calls. This product is simple to install, comes with 100% free technical support and is posted from the US.
- GSM 850 Networks
- 60 dB gain
- Coverage up to 500 sq ft
- Supports 50 simultaneous users
- Works with most US network providers
- Straightforward and easy to install
- 1 x PRO GSM 850 60dB GSM repeater/amplifier
- 1 x Whip Antenna
- 1 x AC/DC main power supply
1) Mount external aerial antenna in outdoors and make sure it point at the nearest mobile tower to get stronger signals. Connect it to 10m signal cable.
2) Connect 10m cable to the repeater. Connect the indoor whip antenna and plug in the power adapter. (The effective coverage area of mobile repeater kit depends on the input signal provided from outdoor antenna.)
|Frequency||Uplink: 824-849MHz; Downlink: 869-904MHz|
|Gain||Uplink: ≥55dB; Downlink: ≥60dB|
|Coverage Area||500 Square Meters|
|Connector Type||N Female|
|Power Supply||DC 12V 2A|
|Dimension||195mm(L) x 140mm(W) x 30mm(H)|
|Net Weight||850 gram|
